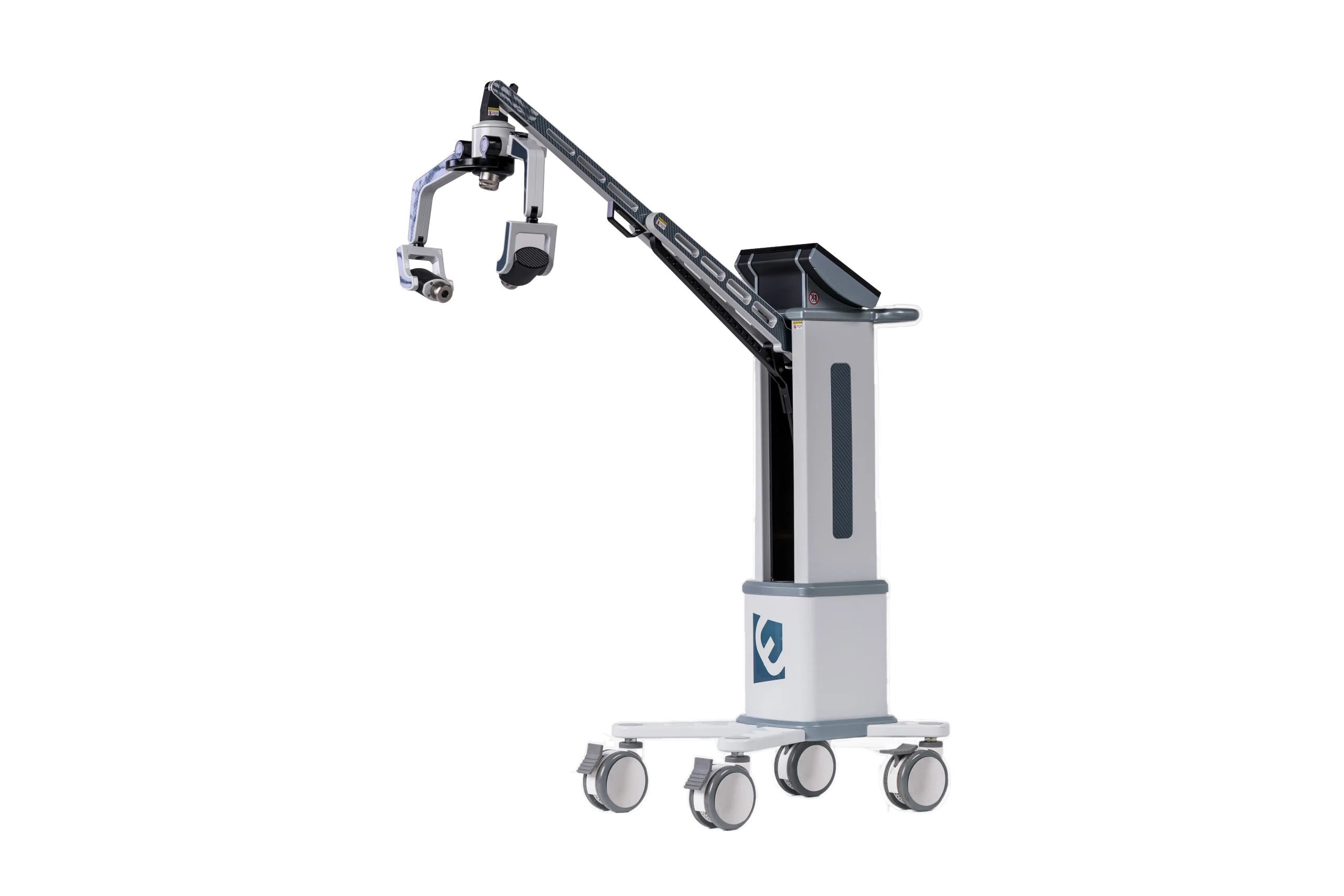

FX 405 Laser
FX 405 · Red + Violet scanner
The FX platform, with violet.
Everything the FX 635 does — plus a violet diode for more energy per photon, and a postoperative pain indication of its own.
The FX 405 laser scanner offers all of the benefits of the FX 635 with the advantage of violet laser for versatility in treatment. Beyond its anti-bacterial and anti-microbial properties, violet produces more energy per photon — and research shows the combination of violet and red results in greater pain relief. Violet also enhances reactive oxygen species (ROS) signaling, which plays an important role in facilitating pain and inflammation reduction. Four line-generating diodes, two adjustable arms, hands-free.
- 4 × line-generating diodes
- 640 nm red + 405 nm violet
- Hands-free
- Non-thermal
- FDA-cleared K231409
- No consumables
Red and violet, hands-freeCleared for nociceptive musculoskeletal pain with red and violet together, and for postoperative pain with the red diodes — on a stand-mounted platform that runs while you work.
4 ×
Class 2 line-generating diodes — red and violet
405 nm
violet diode — the most energetic photon in the line, ~3.06 eV
2
cleared indications: nociceptive musculoskeletal pain; postoperative pain
25+
years medical professionals have trusted Erchonia’s low-level lasers
Why add violet
More energy per photon. Greater pain relief.
Red drives the mitochondrial cascade. Violet adds energy, ROS signaling and anti-microbial properties.
The FX 405 uses low-level laser technology and patented laser diode arms to precisely target pain centers. The body absorbs the light energy, which drives the cell’s mitochondria to produce more ATP. Adding violet changes the arithmetic: each 405 nm photon carries over one and a half times the energy of a red photon, research shows the red-violet combination results in greater pain relief, and violet’s enhancement of reactive oxygen species signaling supports pain and inflammation reduction. Because the laser is non-thermal and works at milliwatt power, patients remain awake, with no burning, scarring or downtime.
| Diode | Photon energy | What it adds |
|---|---|---|
| 640 nm red | ~1.94 eV | Cytochrome c oxidase — ATP production; the FX Series pain platform; postoperative pain (red alone) |
| 405 nm violet | ~3.06 eV | More energy per photon; ROS signaling for pain and inflammation reduction; anti-bacterial and anti-microbial properties |
| Red + violet together | — | Greater pain relief than red alone — the nociceptive musculoskeletal pain indication |
This is energy advancement — not power escalation. Four low-power diodes, two wavelengths, one hands-free protocol.
Why clinics choose it
Why clinics choose the FX 405
The FX platform’s workflow with the line’s most energetic photon added.
01
Two wavelengths, hands-free
Red and violet from four line-generating diodes on two adjustable arms — set the geometry, start the protocol, see the next patient.
02
A postoperative indication
Cleared as an adjunctive treatment of postoperative pain with the red diodes — a drug-free layer in the recovery plan, delivered without a provider in the room.
03
Violet’s extra properties
Anti-bacterial and anti-microbial, more energy per photon, and enhanced ROS signaling — the versatility the FX 635 doesn’t have.
FDA indications for use
Indications for use (K231409)
The Erchonia® FX-405 laser is generally indicated:
- While using the red and violet diodes: for the adjunctive use in providing temporary relief of nociceptive musculoskeletal pain
- While using the red diodes: as an adjunctive treatment of postoperative pain
Prescription use (21 CFR 801 Subpart D). Intended for medical professionals.
Specifications
Built for the clinic floor
The published specification.
| Configuration | (4) Class 2 line-generating diodes |
| Wavelength | 640 nm and 405 nm |
| Modulation | Variable |
| Weight | 65 lb (29.48 kg) |
| Height | 70 in (177.8 cm) average — adjustable |
| Arms | Two independent adjustable arms for the desired laser concentration |
| Mobility | 4 locking anti-static casters |
| Display | Full-color touch-screen control |
| Power | 100–240 VAC, 50–60 Hz |
| Chassis | Powder-coated aircraft aluminum |
| Housing and covers | Non-allergenic material, spray finished |
| Compliance | ISO 13485 medical device quality · ISO 14971 risk management · IEC 60825-1 laser safety · IEC 60601-1-2 EMC · IEC 60601-1 safety |
| Classification | FDA Laser Class 2 · FDA Device Class II · EU Device Class IIa, Laser Class II |
Hands-free
No burning. No scarring. No downtime.
Where it works
Where the FX 405 works
The stand-mounted platform for practices that want red and violet together.
01
Chiropractic and PM&R
The scanner protocol runs while you adjust the next patient — nociceptive musculoskeletal pain, red and violet together.
02

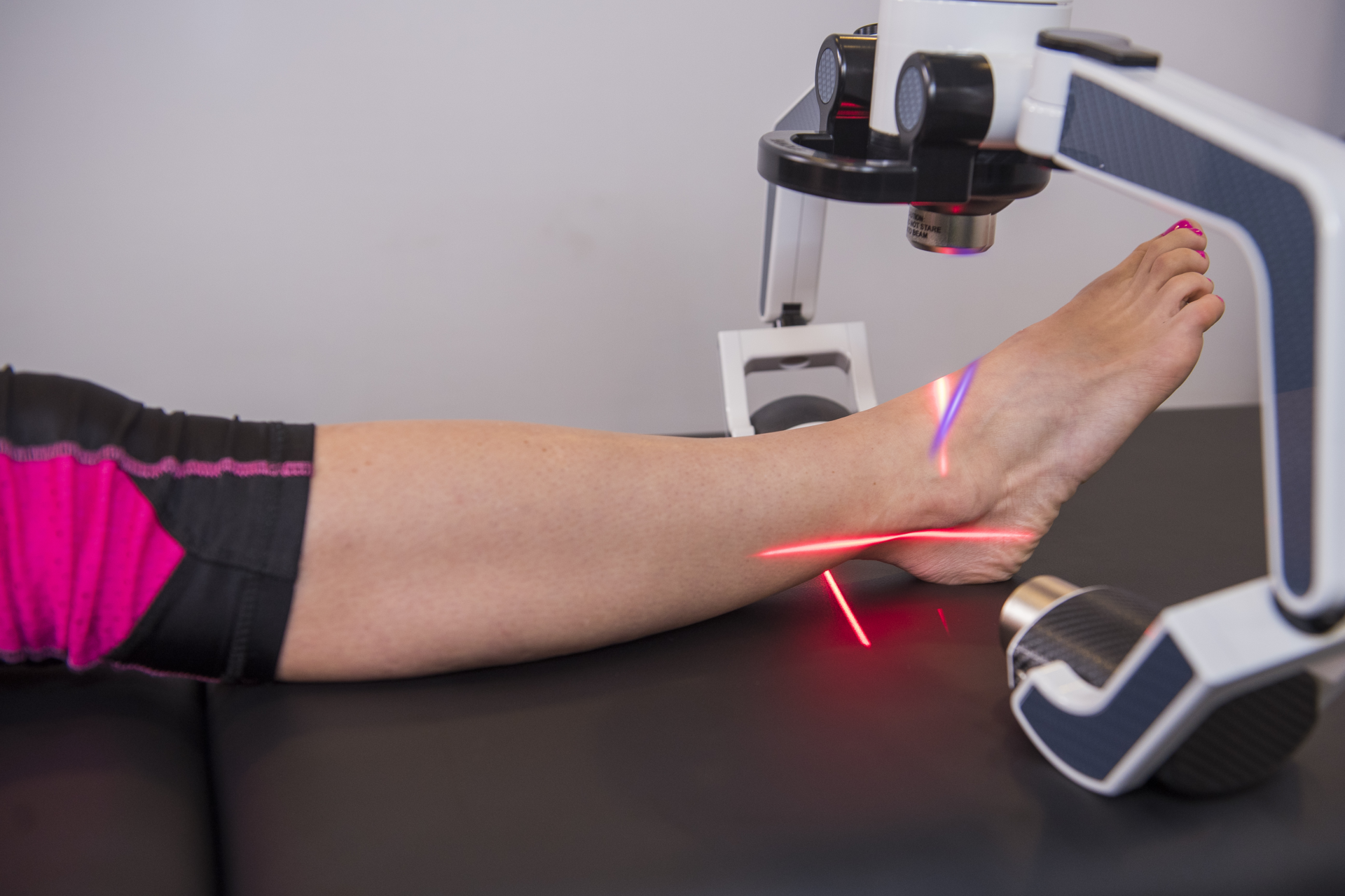

Sports and podiatry
Foot, ankle and lower-extremity pain, hands-free, with violet’s anti-microbial properties on the same platform.
03
Medical and postoperative
Cleared for postoperative pain — a drug-free adjunct in the recovery plan that doesn’t consume a provider.
Clinic · Patients · P&L
See the numbers for your practice.
Project revenue impact, break-even timelines and per-visit value increases from your own clinic volume.
Increased visit value
Laser sessions integrate into care plans, increasing per-visit revenue without increasing provider strain.
Improved case acceptance
Patients commit to conservative plans more readily when non-invasive technology is included.
Retention and reactivation
A reason to return — and a reason to bring back the patients who drifted.
The line
Compare the pain-management systems
Handheld or stand-mounted, red through violet — matched to how your clinic runs.
FX 635
Stand-mounted scanner · hands-free
The hands-free scanner platform, cleared for chronic low back pain and plantar fasciitis. Runs while you see the next patient.
GVL
520 nm green + 405 nm violet · handheld
The most energetic pairing in the line — the first and only FDA-cleared green/violet laser.
EVRL
405 nm violet + 635 nm red · handheld
Red and violet in one instrument — the workhorse handheld with violet’s anti-microbial properties alongside its therapeutic role.
Next step
Add red and violet, hands-free.
Nociceptive musculoskeletal pain and postoperative pain — cleared, hands-free, inside the visit. Tell us how your clinic runs.
Every system ships with onboarding and protocol support from our clinical team.
