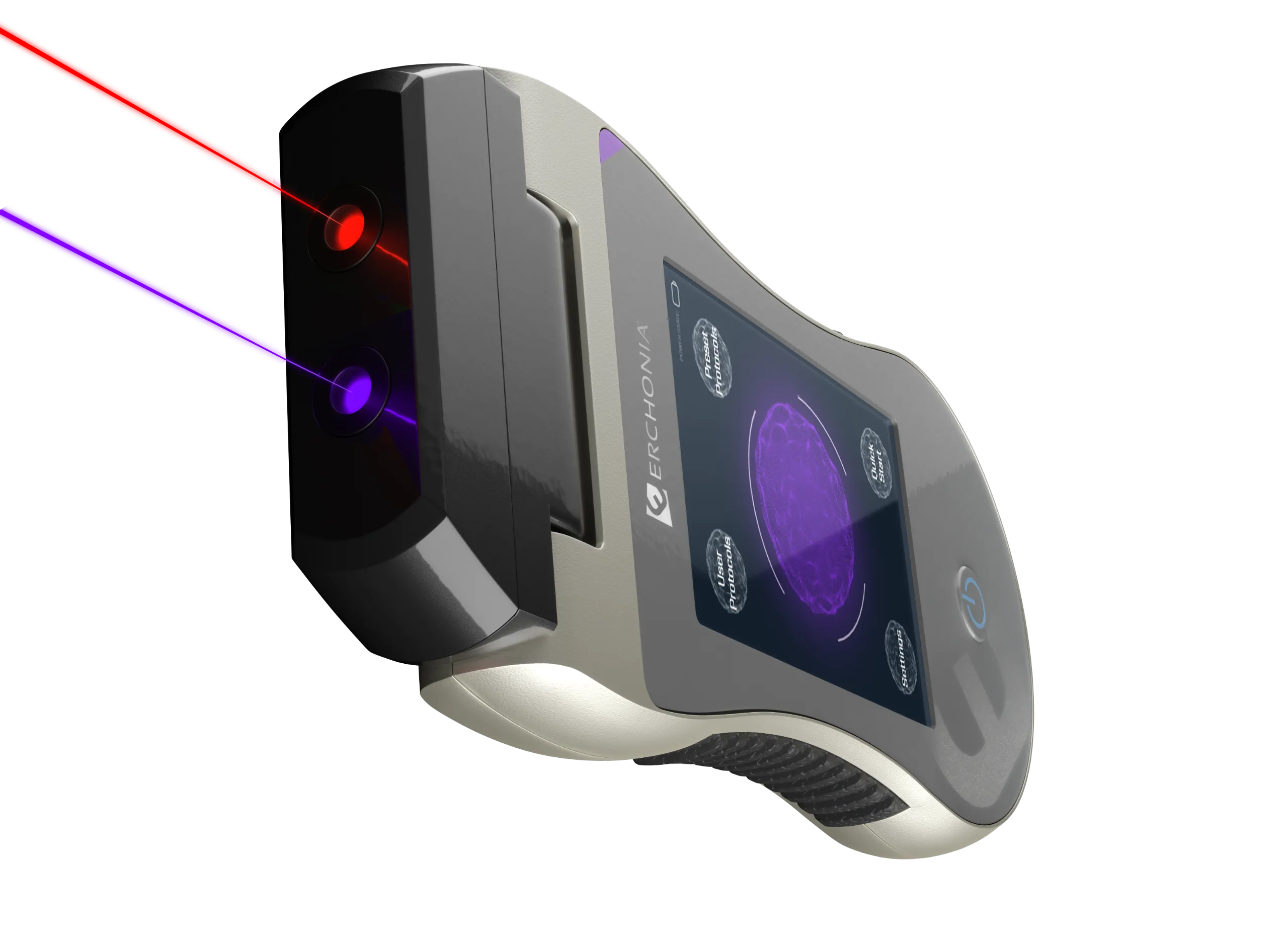

EVL Vet Laser System
EVL Vet Laser System · Red + violet
Two wavelengths. Every patient.
Red for healing, violet for its anti-bacterial and anti-microbial properties — a greater range of treatment options within one handheld, for every species on the schedule.
The EVL laser system is designed with both red and violet lasers to offer varying wavelengths for a greater range of treatment options within one device. The red laser is appreciated for its superb healing qualities, while the violet laser provides anti-bacterial and anti-microbial properties. Together they let a veterinarian address musculoskeletal presentations and, when appropriate, dermatological ones — non-healing wounds, chronic infections, pain and inflammation, post-operative and bone healing, anxiety and neurological trauma — with one compact, portable instrument.
- 640 nm red + 405 nm violet
- Non-thermal
- 0.95 lb handheld
- Preset species protocols
- Class 2
Expanded versatilityThe EVL combines red and violet wavelengths so one handheld covers mobility work and skin-related applications — the broadest clinical flexibility in the veterinary line.
2
wavelengths in one handheld — 640 nm red and 405 nm violet
0.95 lb
device weight — anodized aircraft aluminum, easy to clean
25
FDA clearances behind the human-use technology the EVL is built on
0
heat, pain, sedation or downtime
How it works
Red heals. Violet cleans.
Two mechanisms from one patented optic — the photochemistry of red light and the anti-microbial properties of violet.
The laser’s low levels of light penetrate the animal’s body without intrusion to alter cellular function, naturally reducing oxidative stress and encouraging cellular production of ATP. When the laser reaches the target muscles, nerves or ligaments, it stimulates the mitochondria of the cell into action and encourages increased production of ATP — and that process promotes natural healing. Unlike drugs and surgery, Erchonia’s veterinary lasers cause no pain, scarring or adverse side effects: the animal remains awake throughout and experiences no downtime, which is why non-thermal laser therapy is an ideal choice for any veterinarian looking to keep patients as happy and healthy as possible. In the EVL, the 640 nm red diode drives that mitochondrial response, and the 405 nm violet diode adds its anti-bacterial and anti-microbial properties — the pairing that makes the EVL the choice for the infected wound, the post-surgical site and the chronic skin case as well as the sore joint.
| EVL | What it means in the room | |
|---|---|---|
| Diodes | One 7.5 mW line-generating red diode, one 7.5 mW line-generating violet diode, patented optics | A line of light, not a dot — coverage across the wound or joint from one pass |
| Tissue interaction | Non-thermal | No heat, no clipping for safety, no sedation — the animal stays awake |
| Protocols | Preset canine, equine, feline and exotics channels + user-programmable | The right protocol is a tap away for any patient on the schedule |
| Form factor | 0.95 lb handheld, battery-powered | Exam room, kennel, barn or field — the laser goes to the animal |
Erchonia’s trusted laser technology has proven effective across a wide assortment of conditions affecting the animals you care for — and the EVL brings two of its wavelengths to every one of them.
Why clinics choose it
Why veterinarians choose the EVL
Versatility in a handheld, for clinics that see everything.
01
Two wavelengths, one device
Red for musculoskeletal healing, violet for its anti-microbial properties. The infected wound and the arthritic hip get the right light without a second instrument.
02
Non-thermal, so no sedation
Class IV lasers work by warming tissue; the EVL works at the cellular level without heat. No goggles-and-restraint sessions, no risk of burns under the coat, no cool-down.
03
Preset species protocols
Every Erchonia vet laser ships with easy-to-use preset protocols for canine, equine, feline and exotics, plus user-programmable channels — so the protocol is a tap away and the team learns one workflow across the whole line.
Applications
What veterinarians treat with it
Erchonia Vet Laser Systems are used across equine, canine, feline and avian medicine for conditions including:
- Non-healing wounds
- Chronic infections
- Pain and inflammation
- Post-operative healing
- Bone healing
- Anxiety
- Neurological trauma
Veterinary devices, intended for use by veterinary professionals. The FDA clearances cited on this site apply to Erchonia’s human-use lasers; the veterinary line is built on the same wavelengths, diodes and patented optics.
Specifications
Built for the clinic and the barn
The published specification.
| Configuration | (1) 7.5 mW line-generating red laser diode, (1) 7.5 mW line-generating violet laser diode, patented optics |
| Wavelengths | 640 nm & 405 nm |
| Laser class | Class 2 |
| Display | Full-color TFT touch-screen |
| Power source | 3.7 VDC lithium-ion polymer battery |
| Modulation | Constant wave (CW) and pulsed (Hz) |
| Enclosure | Micro-textured anodized aircraft aluminum for strength and ease of cleaning |
| Weight | 0.95 lb (0.42 kg), device only |
| Compliant to | ISO 13485 · ISO 14971 · IEC 60601-1 · IEC 60601-1-2 · IEC 60825-1 · CE mark |
Non-thermal
Awake, comfortable, done in minutes.
Where it works
Where it works
One handheld, every species on the schedule.
01
Companion animal practice
Post-op incisions, hot spots, arthritis and the anxious patient in the exam room — a non-thermal protocol that fits inside the visit you already booked.
02
Equine and performance
Distal limb wounds, tendon and ligament recovery and soundness work on the animals whose job is to move.
03
Rehabilitation and recovery
The rehab suite’s hands-on adjunct: pain and inflammation, bone healing and neurological trauma, session after session, with nothing to warm up or cool down.
Clinic · Patients · P&L
See the numbers for your practice.
Project revenue impact, break-even timelines and per-visit value increases from your own clinic volume.
Increased visit value
Laser sessions integrate into care plans, increasing per-visit revenue without increasing provider strain.
Improved case acceptance
Patients commit to conservative plans more readily when non-invasive technology is included.
Retention and reactivation
A reason to return — and a reason to bring back the patients who drifted.
In use
Red and violet, at work.

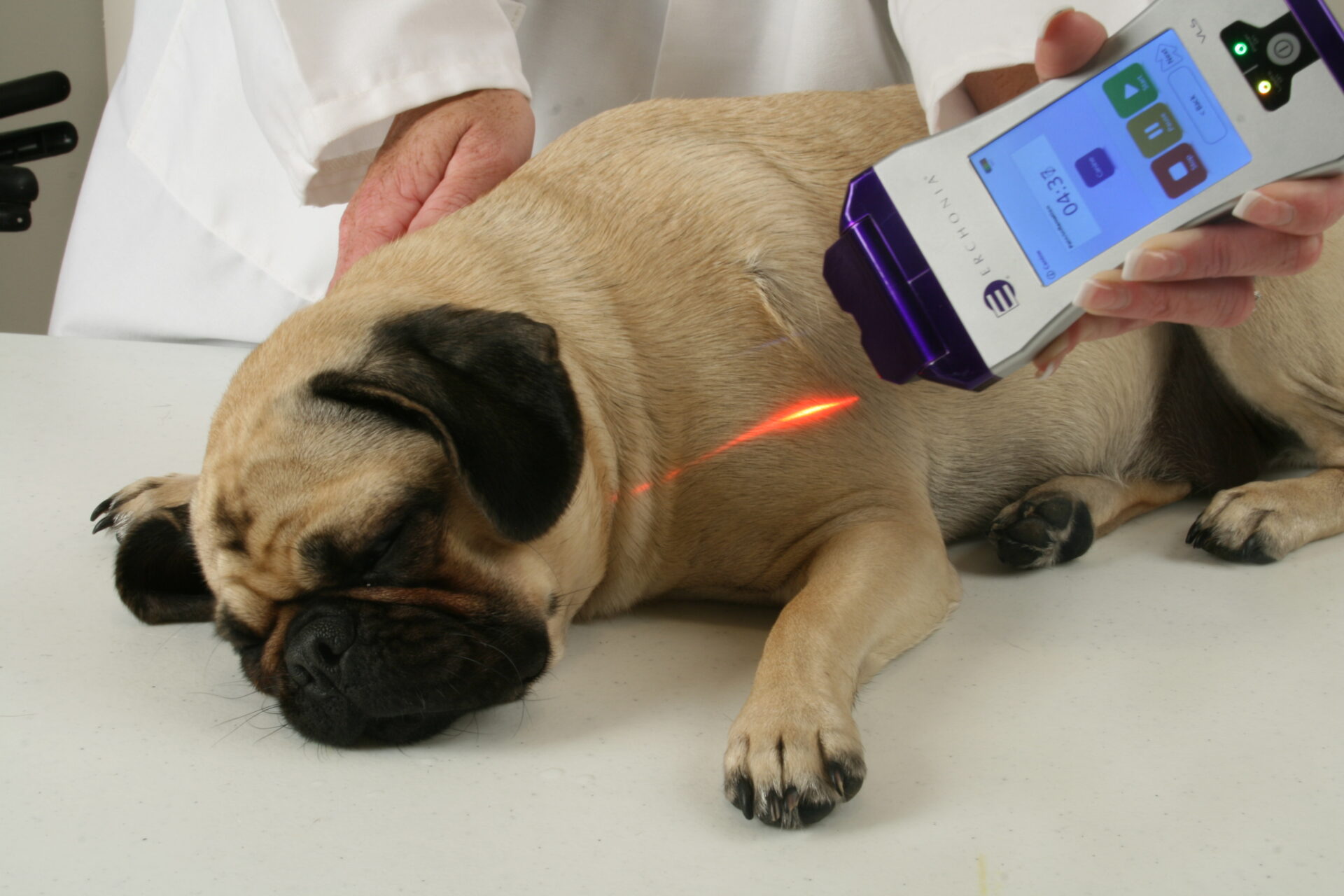

The EVL in the exam room.
The line
The veterinary line
Three wavelength pairings, one handheld platform — matched to the caseload.
VGL
520 nm green + 405 nm violet · handheld
The world’s first green-and-violet laser, adapted for veterinary use — the most energetic pairing in the line, for performance, recovery and rehabilitation.
VLS
Dual 640 nm red · handheld
The proven red foundation — two line-generating red diodes in the handheld that started veterinary photobiomodulation at Erchonia.
MitoCollar
Wearable · pet health
Erchonia light therapy in a wearable collar — the take-home companion to in-clinic laser care.
Next step
Bring the EVL to your practice.
Tell us what fills your schedule — companion, equine, exotics — and we’ll walk you through the protocols, the pricing and a 1:1 demo.
Every system ships with onboarding and protocol support from our clinical team.
